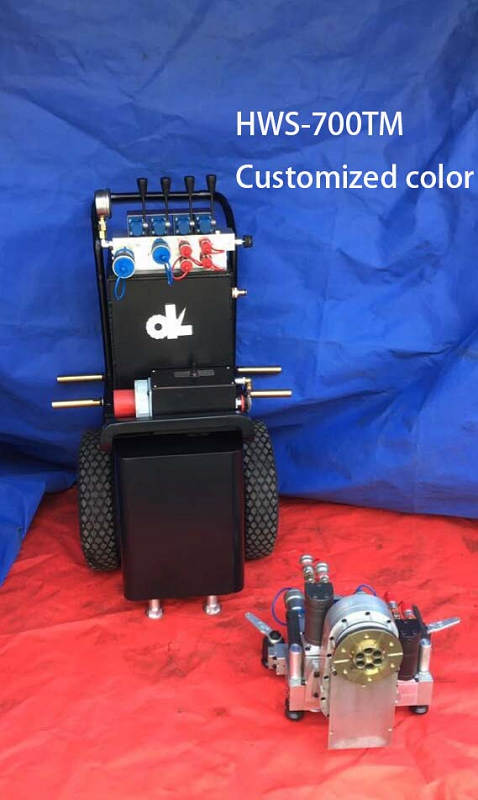

HWS-700TM Hydraulic Wall Saw

  • hydraulic concrete wall saw for sale
  • hydraulic concrete wall saw for sale

Hydraulic concrete Wall Saw for sale in China. it can precisely cut accurate openings to form windows, doors and ventilation units, and remove entire sections of structures in materials such as heavily reinforced concrete, masonry and stone.

Category:

INQUIRY

 hydraulic concrete wall saw for sale

It is very powerful and designed to make your work more efficient. Use is a very powerful wall saws for cutting reinforced concrete, brick and other building materials, up to 730 mm thickness. It can be used for all kinds of openings and sawing including stair, bevel and flush cutting.

Technical data

OK-700TM Power pack

  • Max. output power : 30kW
  • Electric motor : Water cooled
  • Rated voltatge(Wide voltage & Frequency) : 380V-480V  50Hz/60Hz
  • IP protection code : IP54
  • Pressure stages : 3
  • Max.operating pressure : 210bar
  • Oil flow rate : 40-100l/min.
  • Dimensions(L*B*H) : 500mm*520mm*1100mm
  • Weight : 120kg

OK-700TM saw head

  • Saw blade diamteter range : 800-1600mm
  • Cutting depth : 730mm
  • Max.oil flow rate : 100l/min.
  • Max.operating preesure : 200bar
  • Gearing : gear
  • Rotation speed(with 700TM unit) : 600/850/1400Rpm
  • Demensions(L*B*H) : 400mm*420mm*400mm
  • Weight : 38kg

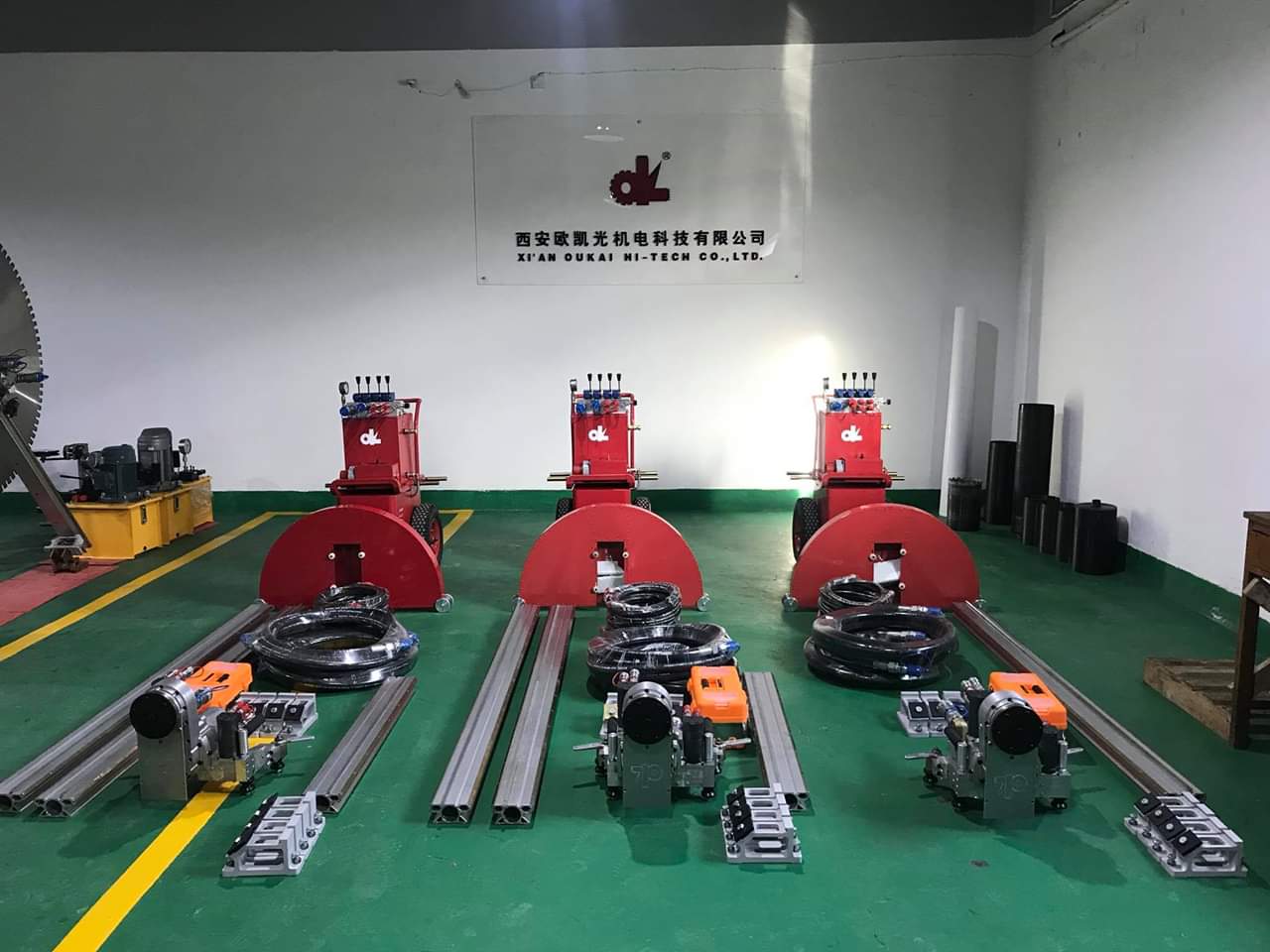

HWS-700TM hydraulic concrete wall saw

HWS-700TM hydraulic concrete wall saw
