HWS-600TM Wall Saw

HWS-600TM wall saw wtih the swivel arm provides simple,fast blade replacement and facilitates use in flush cutting applications.Innovative feed motors ensure fast Cutting.


Hydraulic  wall saw (HWS-600TM)

Ideal cutting speed using 3 stage adjustment.

Simple operation directly at the power pack with few hand movements.

Swivel arm,can be located by 360.

Techincal data


Max start up blade diameter: 800mm

Max using blade diameter: 1400mm

Max cutting depth: 620mm

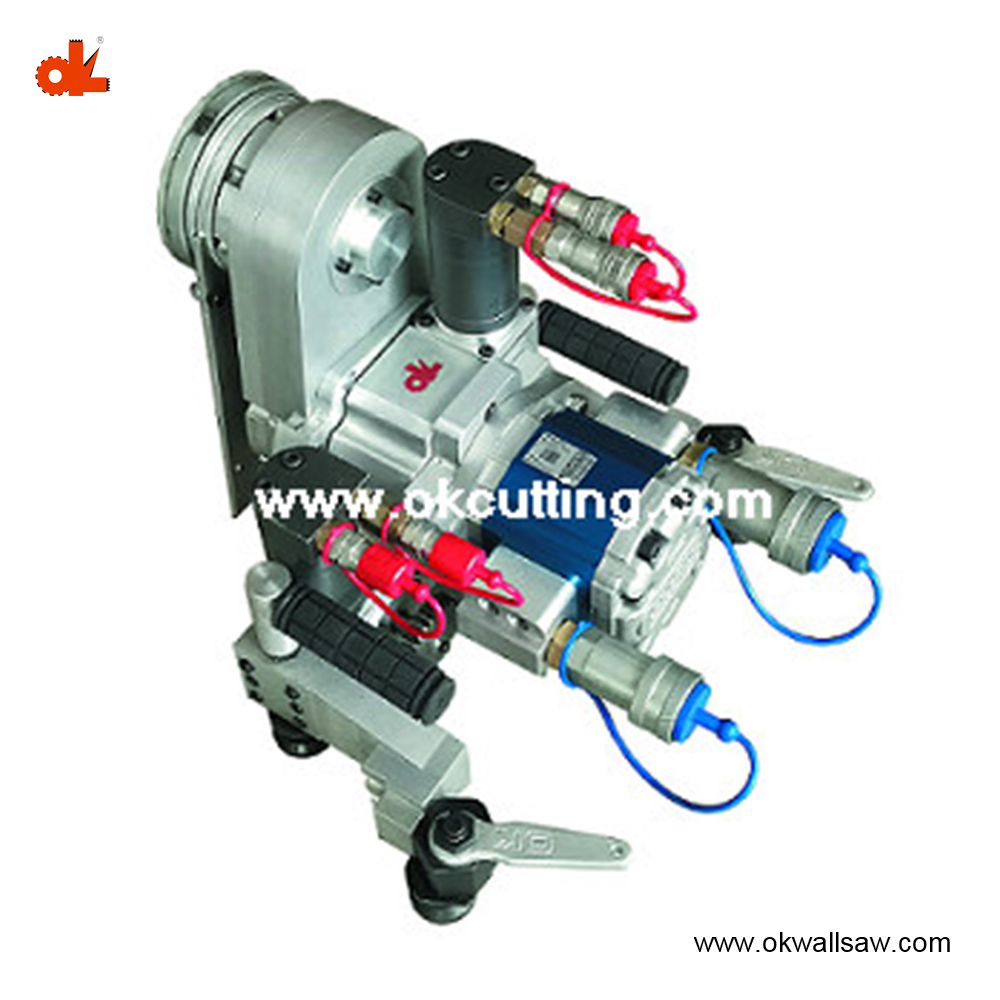

2.Sawing head

Output axle diameter: 60mm

Max working pressure: 200bar

Blade cutting method: Automatic

Speed of blade: 500/900/1300rpm

Weight: 40kg

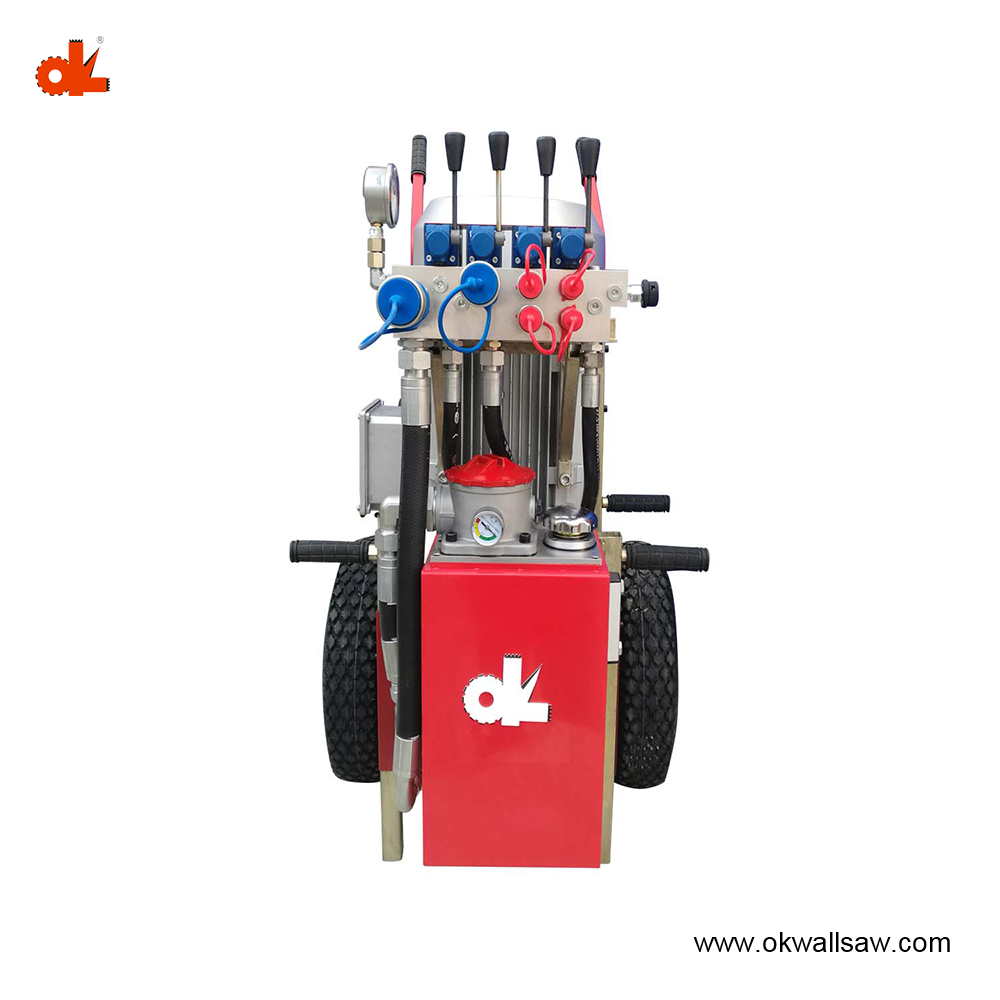

3.Hydraulic power pack( OK-600TM)

Input power: 25kw

Max fuel flow: 80L/min

Voltage: 380V/400V,3-phase ,50HZ

Control method: Hydraulic automatic

Weight (include Oil): 220kg

Dimensions(L*B*H): 65*60*100 cm

Standard configuration:

  • 1 sawing head 600TM
  • 1 hydraulic power pack (ok-60TM)
  • 1 hose set (6 hydraulic hoses)
  • 1 rail 2 m
  • 1 rail 1 m
  • 4 mounting brackets for rail
  • 2 stopper for rail´s end
  • 1 blade guard
  • 1 tool box
  • 1 blade 800mm
