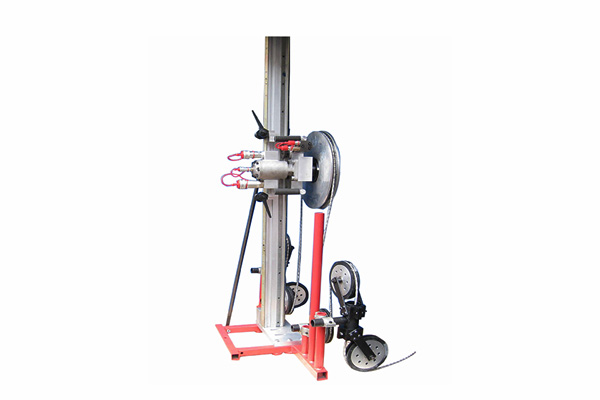

OK-70AM wire saw machine
Wire saw SQ-70AM
Gross wire length 10 m,Easily transportable
Quick, safe and easy wire sawing.The wire saw with the extra large wire store and long stroke for maximum utilisation and application for a maximum structure size of 10 m.
multiple applications.Easy start-up and wire conserving thanks to the innovative damping system. Hydraulic main and feed motors for Italy.
Technical details
- Total travel:1800mmMax. wire storage : 10m
- Width (variabel) : 1050mm
- Depth : 550mm
- Height : 2050mm
- Length of protective cover : 2000mm
- Drive wheel : 550mm
- Storage wheel : 200mm
- Rack weight(Including all wheel) : 85kg
- Wire saw head : 30kg(easy to disassemble and assemble)
- Hydraulic power unit 600TM : 25 kW, 200 bar,3speeds, 0-85l/min, 180kg
