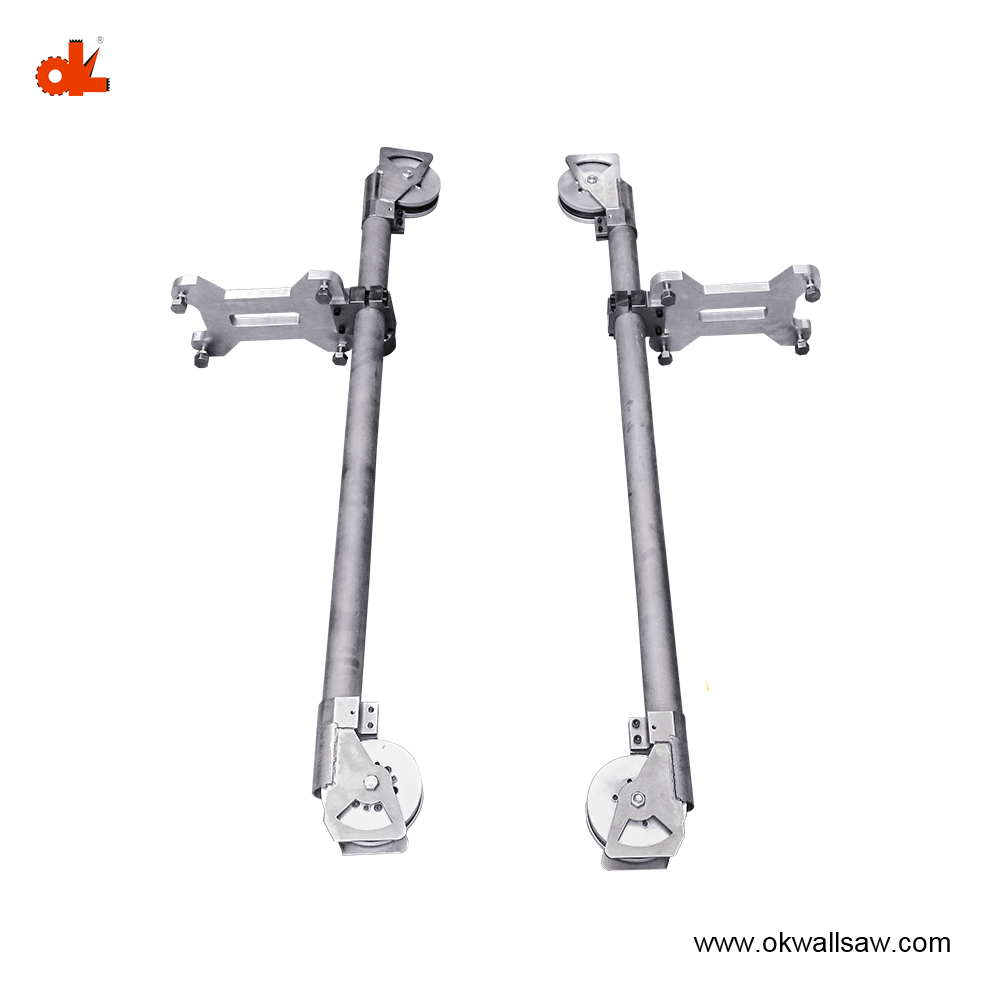

The Plunge Wire saw device is used when you only have access to one surface to be cut.
Use: for plunge cutting.

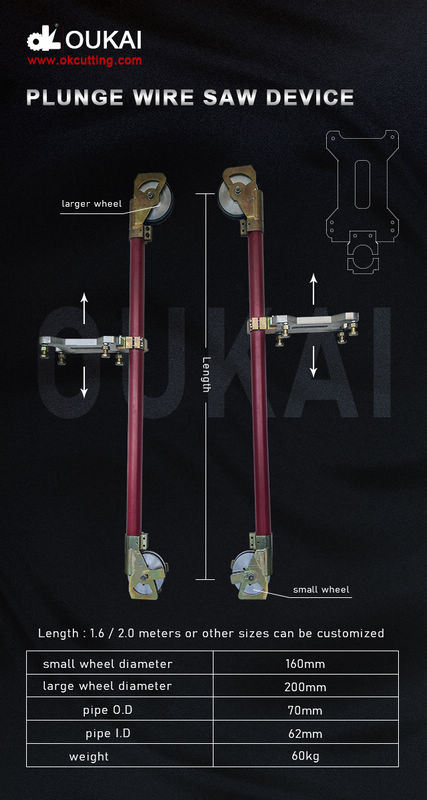

Weight: Different size weight is different(Net weight around 60kg)
Length: 1.2m/1.6m /2m (Pulley Dia: 120mm/160mm/200mm)
Pipe O.D. and I.D. (70mm,62mm)
Min.Order: 2 sets ( 1sets= 2 plunge sets)

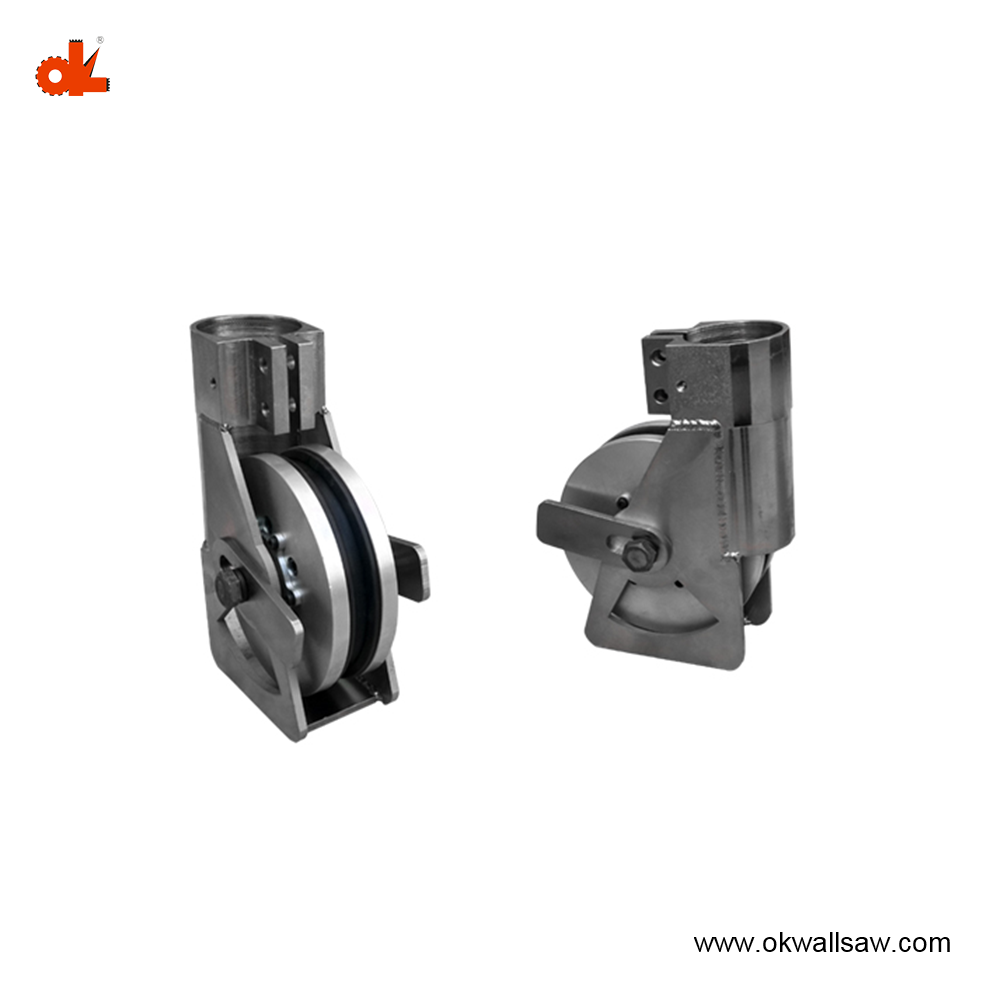

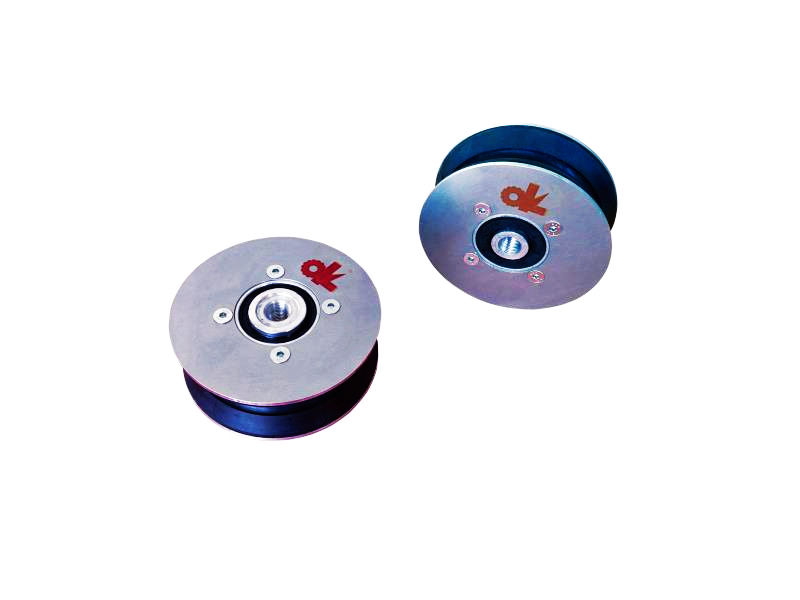

pulley Diameter: 120mm/160mm/200mm

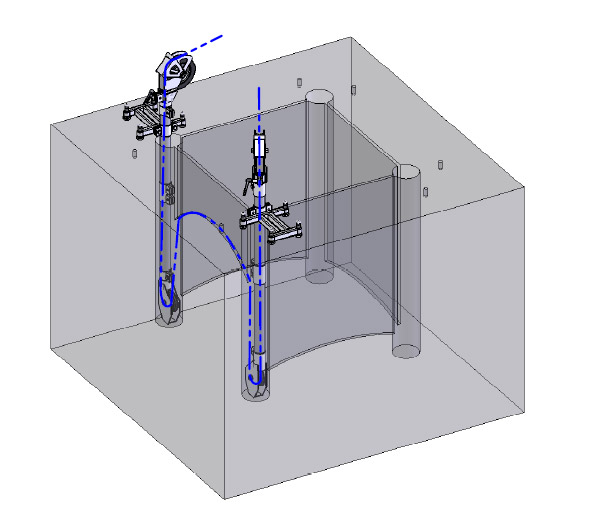

On this contract a wire saw rig has been adapted to plunge cut to remove large blocks of reinforced concrete.Firstly core holes were drilled to the bottom of the section for removal,into which legs with base wheels were inserted.

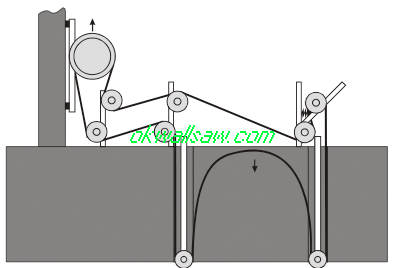

The wire saw drive unit was attached to a track fixed on the wall.Wire was threaded as shown and the drive unit driven up the track causing the wire to cut downwards.
