High Frequency Wire Saw

OK- wire saws are modular in design, which means that a number of components such as the motor, rails and the HF drive system can also be used for other machines such as the wall saw.

INQUIRY

With over 20 years of experience in developing, designing and producing high-quality sawing machines.

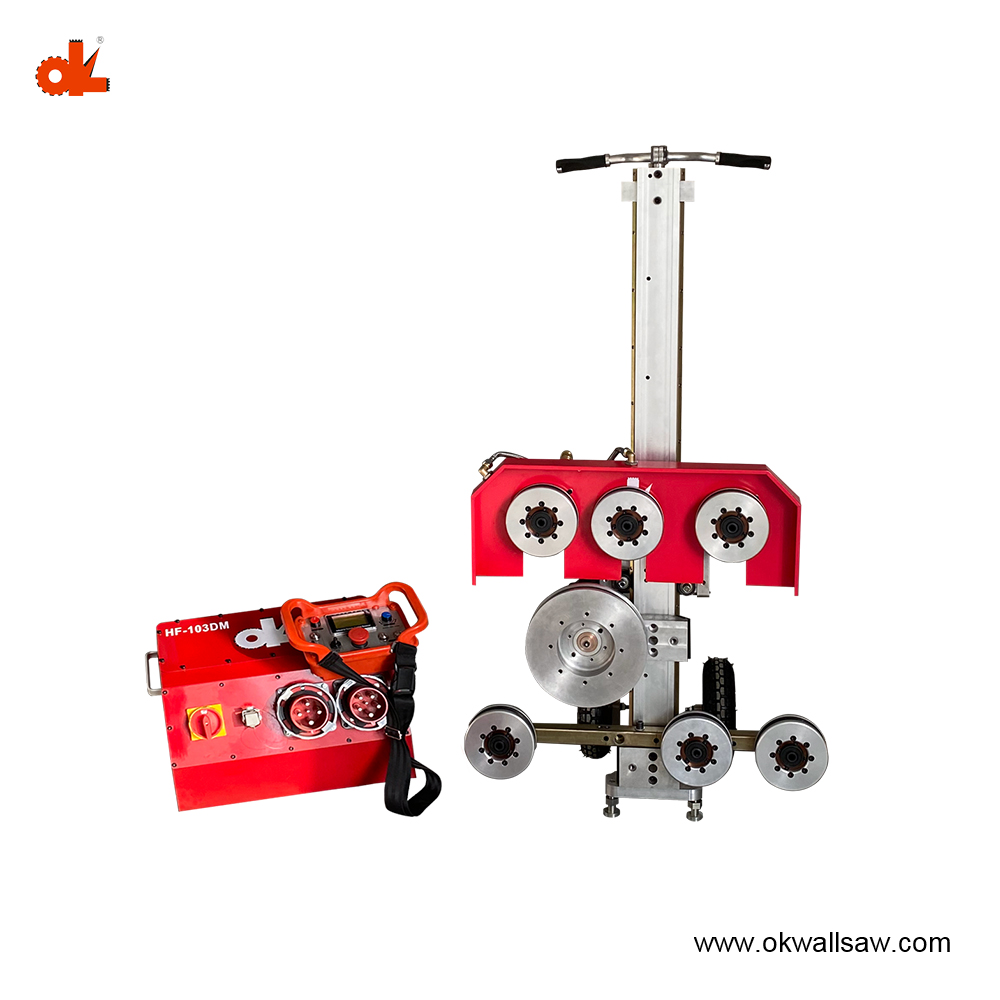

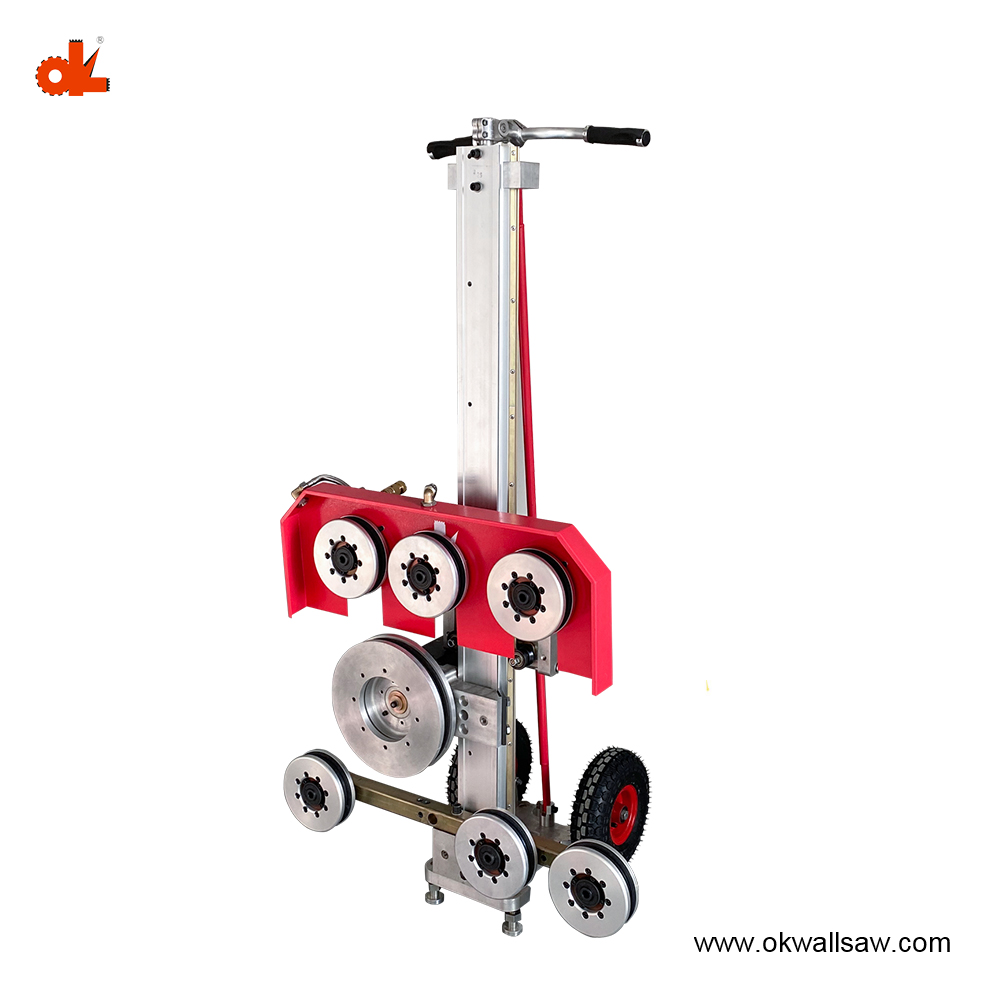

HF-103DM  High Frequency Wire Saw

Wireless Remote Control

high frequency power and user-friendly

Wire

Wire storage           11m

Wire Φ, sintered      11.5mm

Wire Φ, brazed       10mm

Design

Drive wheel : Φ350mm

Guide pulleys: Φ168mm

Feed wire storage: electric

Electric motor

Water-cooled high-frequency motor

Output  32A  17kw  19kg

Output  16A  9kw   15kg

Control

Voltage       380~460V

Frequency     50Hz/60Hz

Weight         18kg

Wireless control  1.8kg

Dimensions & weight

Height               1100 /1600mm

Width                     900mm

Depth                     550mm

Weight                    85kg

Weight without main motor   60kg

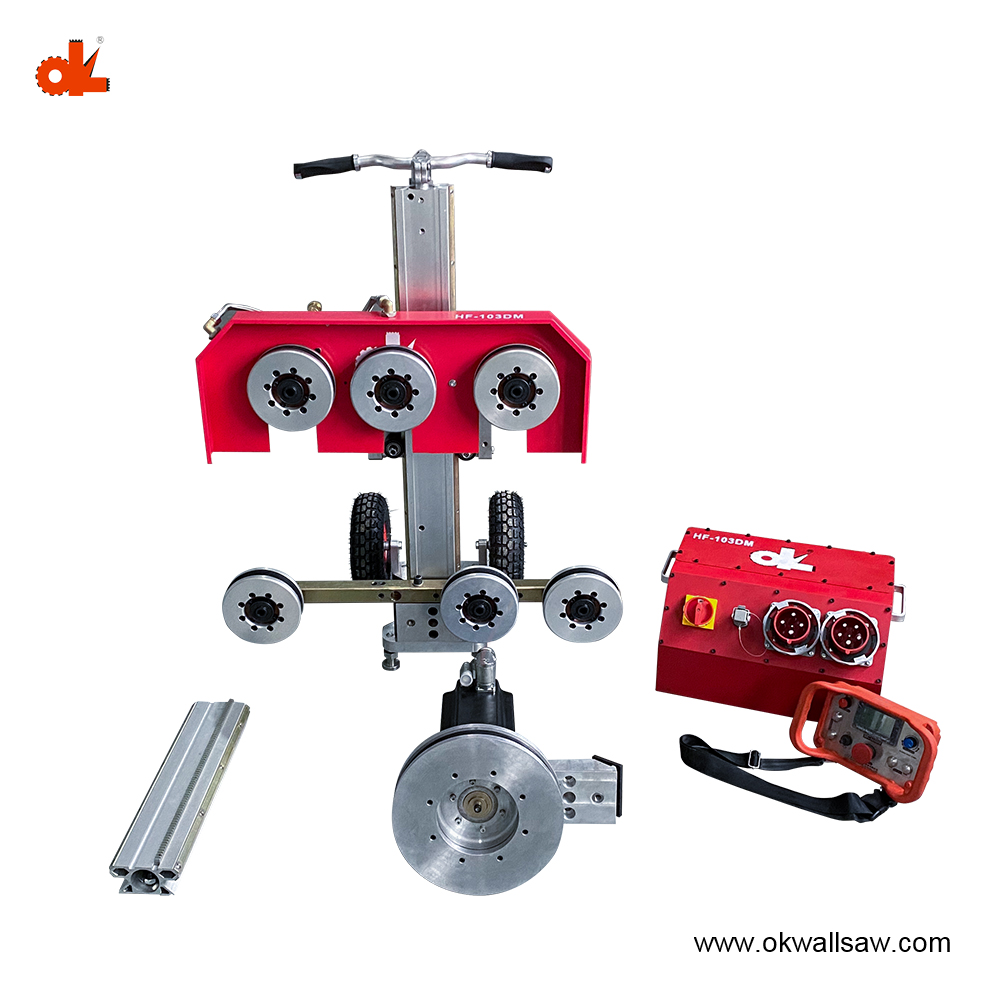

(Main motor can be disassembled and mounted

quickly and easily)
